Article features

• rotatable bath spout
• 2 functions
• simultaneous utilization of 2 functions
• temperature and volume control
• Select push-button on/off control for 2 outlets
• CoolContact thermostat: Prevents the housing from heating up, making showering even safer
• maximum flow rate at 3 bar: 18,7 l/min
• flow rate for bath spout at 3 bar: 18,7 l/min
• flow rate of hand shower at 3 bar: 15,9 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• Safety stop at 40 °C
• temperature limitation adjustable
• with isolated water conduction
• non-return valve
• protected against backflow, according to DIN EN 1717
• with silencer
• suitable for continous flow water heaters
• material handles: plastic
• shelf made of plastic
• surface shelf: graphite
• connection dimension: DN15
• connection type: s-shaped connections, G ½
• wall-mounted

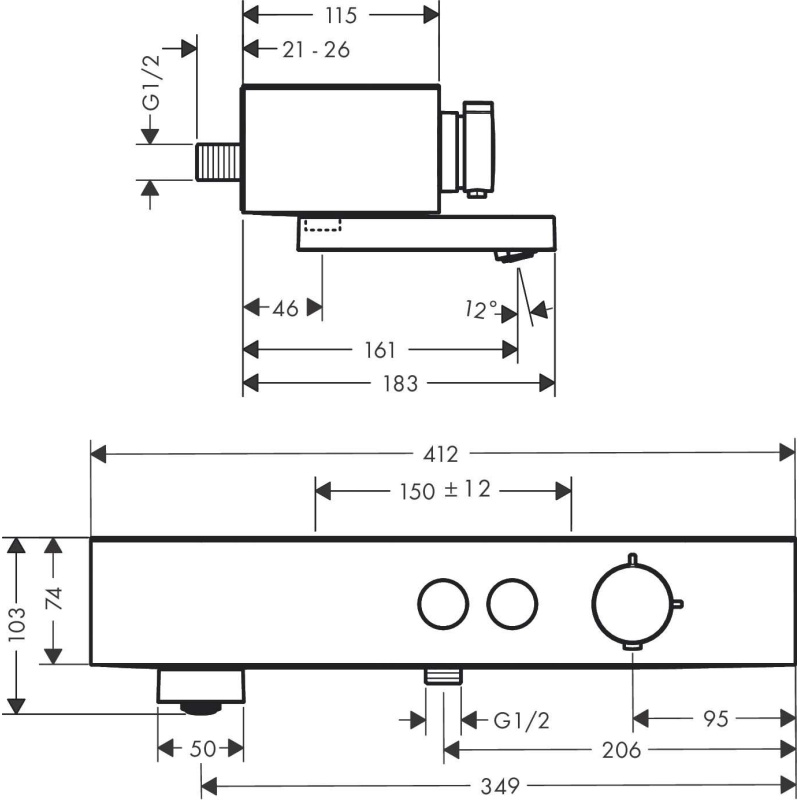

• centre distance: 150 ± 12 mm
• dirt filter included
• thermostat is delivered with buttons hand shower and bath tub
