Article features

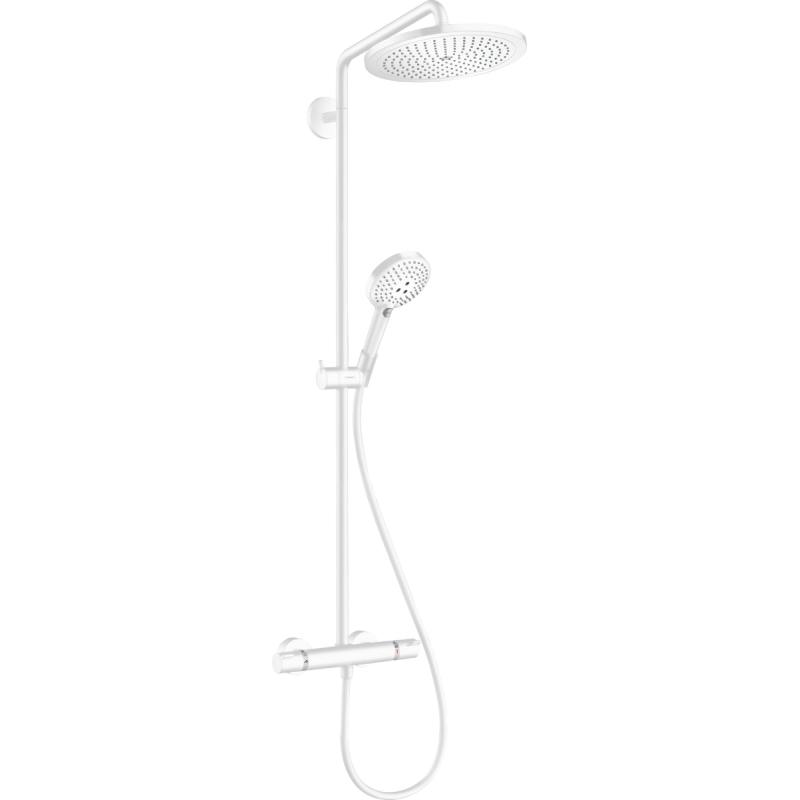

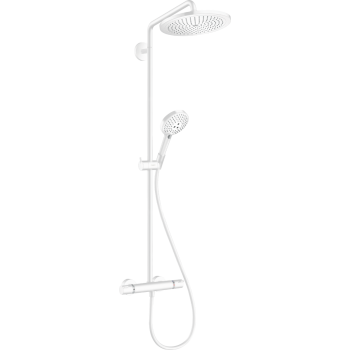

• consists of: overhead shower, hand shower, shower thermostat, shower hose, slider, shower bar
• overhead shower Croma 280
• shower head size overhead shower: 280 mm
• spray type overhead shower: RainAir
• flow rate RainAir spray at 3 bar: 9 l/min
• spray type hand shower: RainAir, Rain, Whirl
• maximum flow rate for Showerpipe at 3 bar: 9 l/min
• minimum flow pressure: 2,2 bar
• max. operating pressure: 10 bar
• ball-joint: overhead shower angle adjustable
• height-adjustable slider
• shower arm length overhead shower: 400 mm
• swivel shower arm
• thermostat Ecostat Comfort
• SafetyStop at 40°C
• adjustable hot water limitation
• outlets controlled via turning handle
• suitable for continuous flow water heaters
• mounting type: exposed installation
• connection dimension: DN15
• connection thread: G ½
• centre distance: 150 ± 12 mm
• pipe can be shortened in height
• intrinsically safe against backflow
• shower bar diameter: 22 mm
• 2 functions
